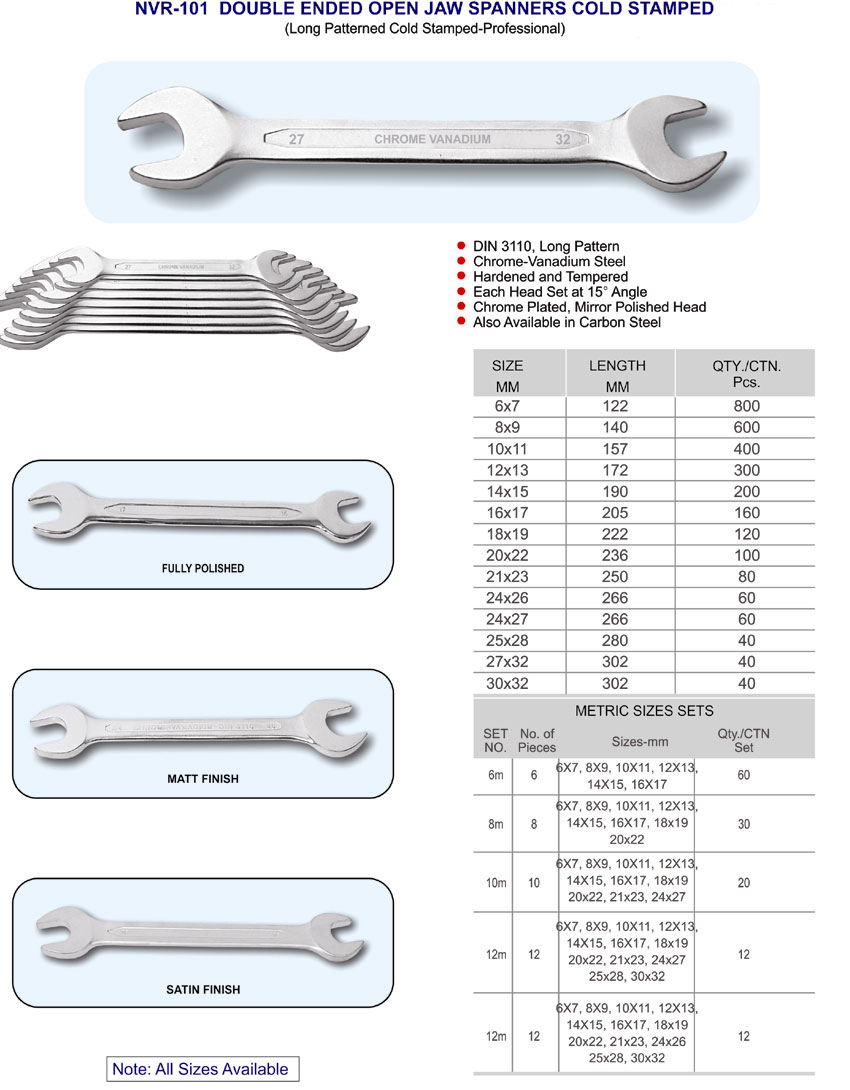

  • DIN 3110, Long Pattern

  • Chrome-Vanadium Steel

  • Hardened and Tempered

  • Each Head Set at 15° Angle

  • Chrome Plated, Mirror Polished Head

  • Also available in Carbon Steel

SIZE
MM		 LENGTH
MM		 QTY./CTN.
Pcs.		 VOLUME
Cu. M.
6x7 122 800 .017
8x9 140 600 .018
10x11 157 400 .016
12x13 172 300 .016
14x15 190 200 .018
16x17 205 160 .018
18x19 222 120 .016
20x22 236 100 .017
21x23 250 80 .017
24x26 266 60 .015
24x27 266 60 .016
25x28 280 40 .015
27x32 302 40 .016
30x32 302 40 .016





METRIC SIZES SETS

SET

NO.

No. of

Pieces

 SIZES - mm QTY./CTN.
Set		 VOLUME
Cu. M.
6m 6

6x7, 8x9, 10x11, 12x13,

14x15, 16x17

 60 .022
8m 8

6x7, 8x9, 10x11, 12x13,

14x15, 16x17, 18x19, 20x22

 30 .024
10m 10

6x7, 8x9, 10x11, 12x13,

14x15, 16x17, 18x19,

20x22, 21x23, 24x27

 20 .029
12m 12

6x7, 8x9, 10x11, 12x13,

14x15, 16x17, 18x19, 20x22, 21x23, 24x27, 25x28, 30x32

 12 .025
122m 12

6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 21x23, 24x27, 25x28, 30x32

 12 .025
