3

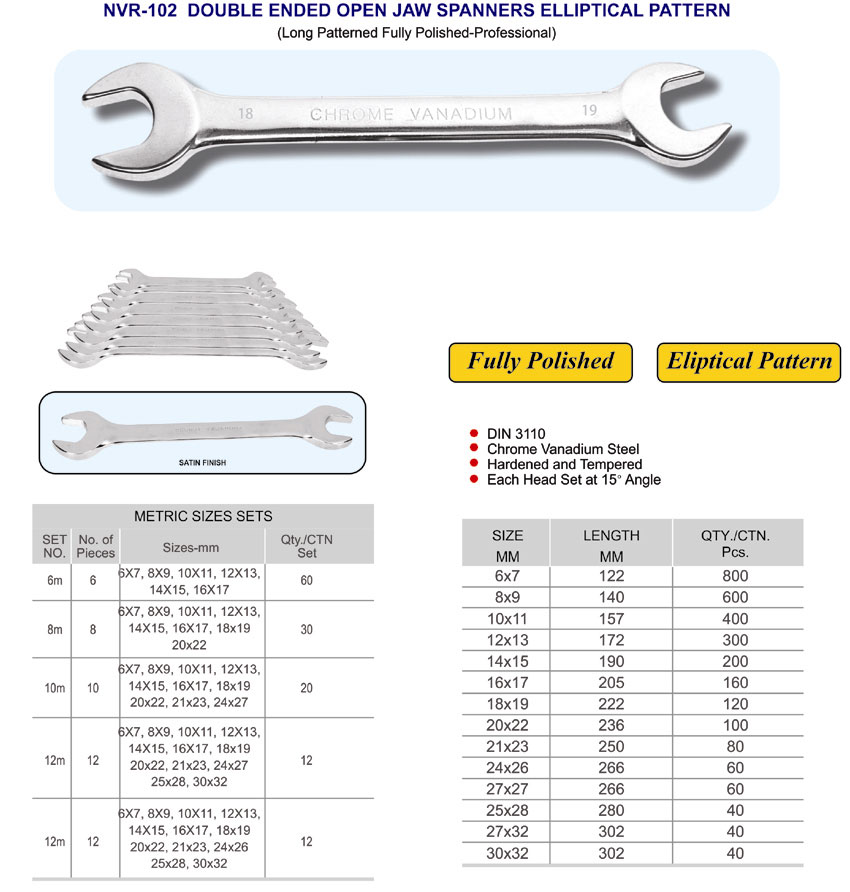

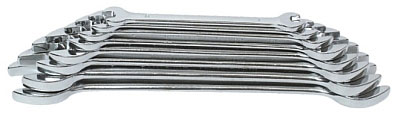

METRIC SIZES SETS

SET

NO.

 No. of Pieces SIZES - MM QTY./CTN.
Set		 VOLUME
Cu. M.
6M 6

6x7, 8x9, 10x11, 12x13, 14x15, 16x17

 60 .024
8M 8

6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22

 30 .025
10M 10

6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 21x23, 24x27

 20 .030
12M 12

6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 21x23, 24x27, 25x28, 30x32

 12 .031
122M 12

6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 21x23, 24x27, 25x28, 30x32

 12 .029









  • DIN 3110

  • Chrome-Vanadium Steel

  • Hardened and Tempered

  • Each Head Set at 15° Angle



SIZE
MM		 LENGTH
MM		 QTY./CTN.
Pcs.		 VOLUME
Cu. M.
6x7 122 800 .020
8x9 140 600 .021
10x11 157 400 .022
12x13 172 300 .020
14x15 190 200 .016
16x17 205 160 .019
18x19 222 120 .017
20x22 236 100 .018
21x23 250 80 .017
24x26 266 60 .017
24x27 266 60 .016
25x28 280 40 .014
27x32 302 40 .016
30x32 302 40 .018
