3







SET NO. No. of Pieces SIZES - mm QTY./CTN.
Set		 VOLUME
Cu. M.
6m 6 6x7, 8x9, 10x11, 12x13, 14x15, 16x17 40 .038
8m 8 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22 20 .036
10m 10 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 21x23, 24x27 10 .027
12m 12 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 21x23, 24x27, 25x28, 30x32 10 .033
122m 12 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 21x23, 24x27, 25x28, 30x32 10 .029

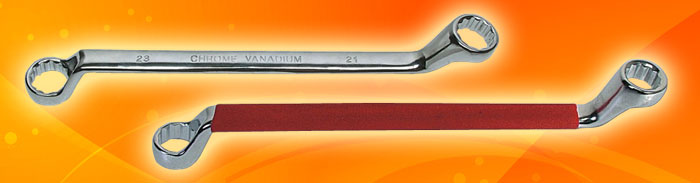

  • DIN 838

  • Drop Forged from Chrome-Vanadium Steel

  • Hardened and Tempered

  • Each Head Set at 15° Angle







SIZE LENGTH
MM		 QTY./CTN.
Pcs.		 VOLUME
Cu. M.
MM INCH
6x7 1/4x5/16 170 400 .014
8x9 - 180 300 .012
10x11 3/8x7/16 195 240 .015
12x13 - 210 200 .020
14x15 1/2x9/16 225 160 .024
16x17 5/8x11/16 245 120 .019
18x19 3/4x25/36 266 80 .019
20x22 13/16x7/8 285 80 .024
21x23 - 305 60 .021
24x26 - 325 60 .023
24x27 15/16x1 325 60 .023
25x28 - 345 40 .020
27x32 1.1/16x1.1/4 370 40 .024
30x32 - 370 40 .025
